LN4715D24-001 350KV

This precision-engineered DC motor serves as a reliable power core for mid-to-large drones, ideal for commercial, industrial, and professional UAV applications. It meets modern drone needs—stable flight control and long-duration missions—making it suitable for both ready-made models and custom-built UAV projects.​

• Rated Voltage : 24VDC
• Motor withstand voltage test: ADC 600V/3mA/1Sec;
• No-load performance:
  8400±10% RPM/1.5A Max
• Load performance: 5500 ± 10% RPM / 38.79A ± 10% / 1.73 N.m
• Motor vibration: ≤ 7 m/s
• Motor rotation direction: CCW
• Duty: S1, S2
• Operational Temperature: -20°C to +40°C
• Insulation Grade: Class F
• Bearing Type: durable brand ball bearings
• Optional shaft material: #45 Steel, Stainless Steel, Cr40
• Certification: CE, ETL, CAS, UL

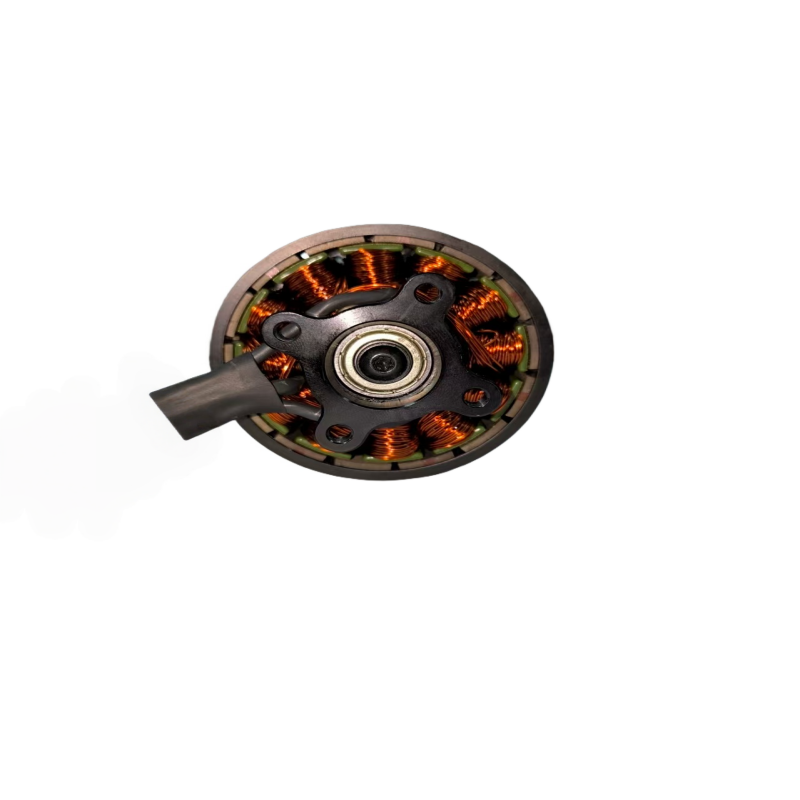

LN4715D24-001 350KV Images
